The stiffest and lightest Dorado with carbon fiber legs
The stiffest and lightest Dorado with carbon fiber legs
Manitou

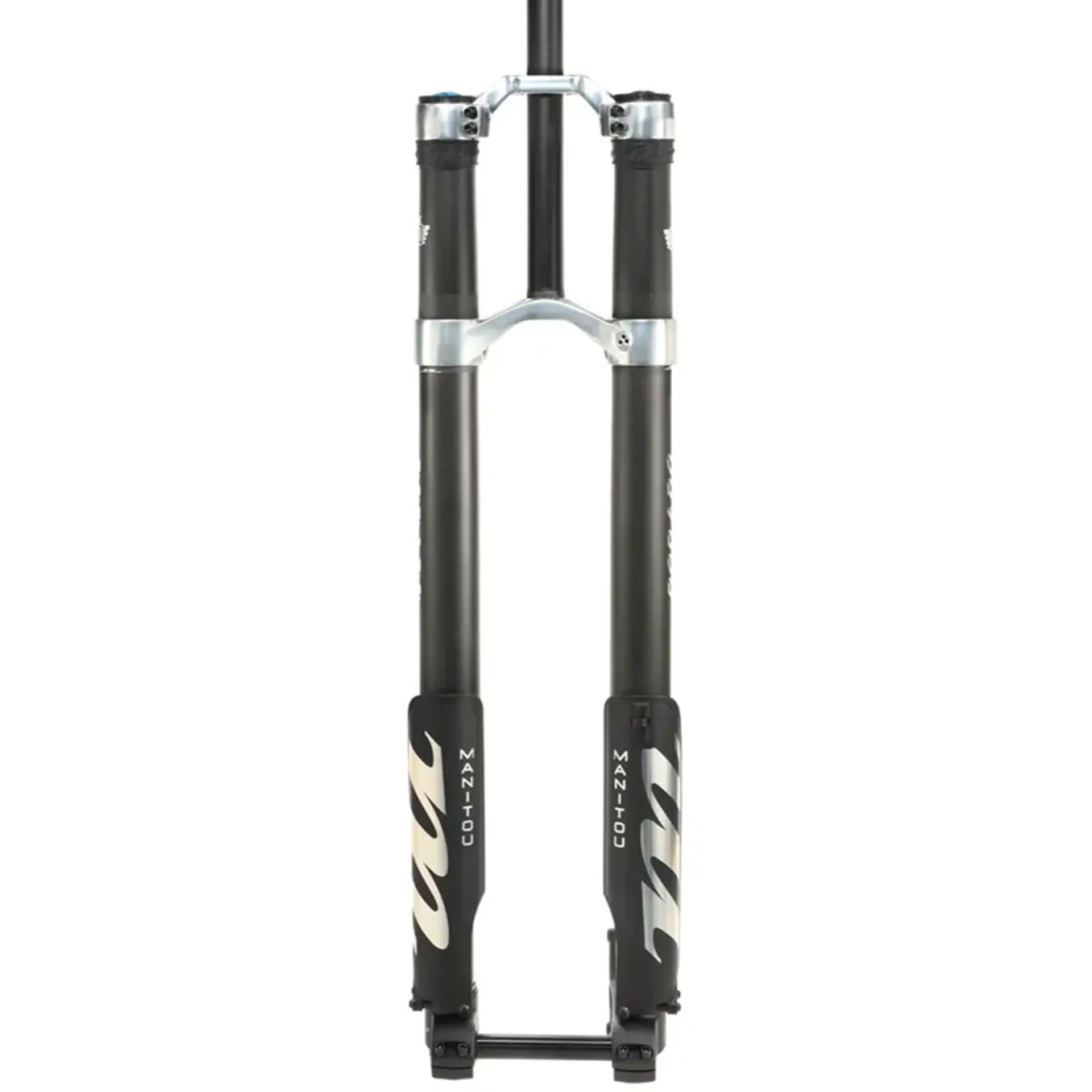

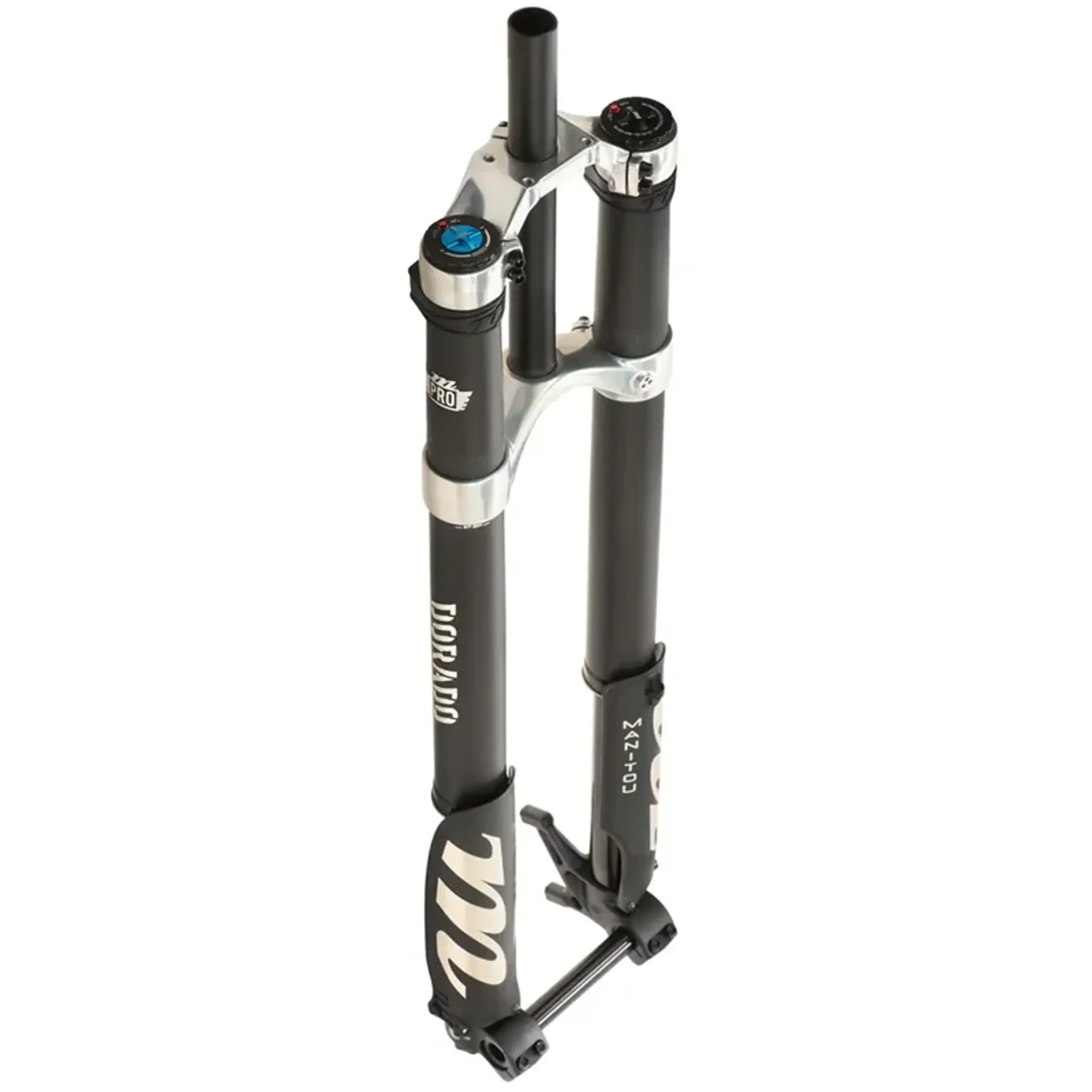

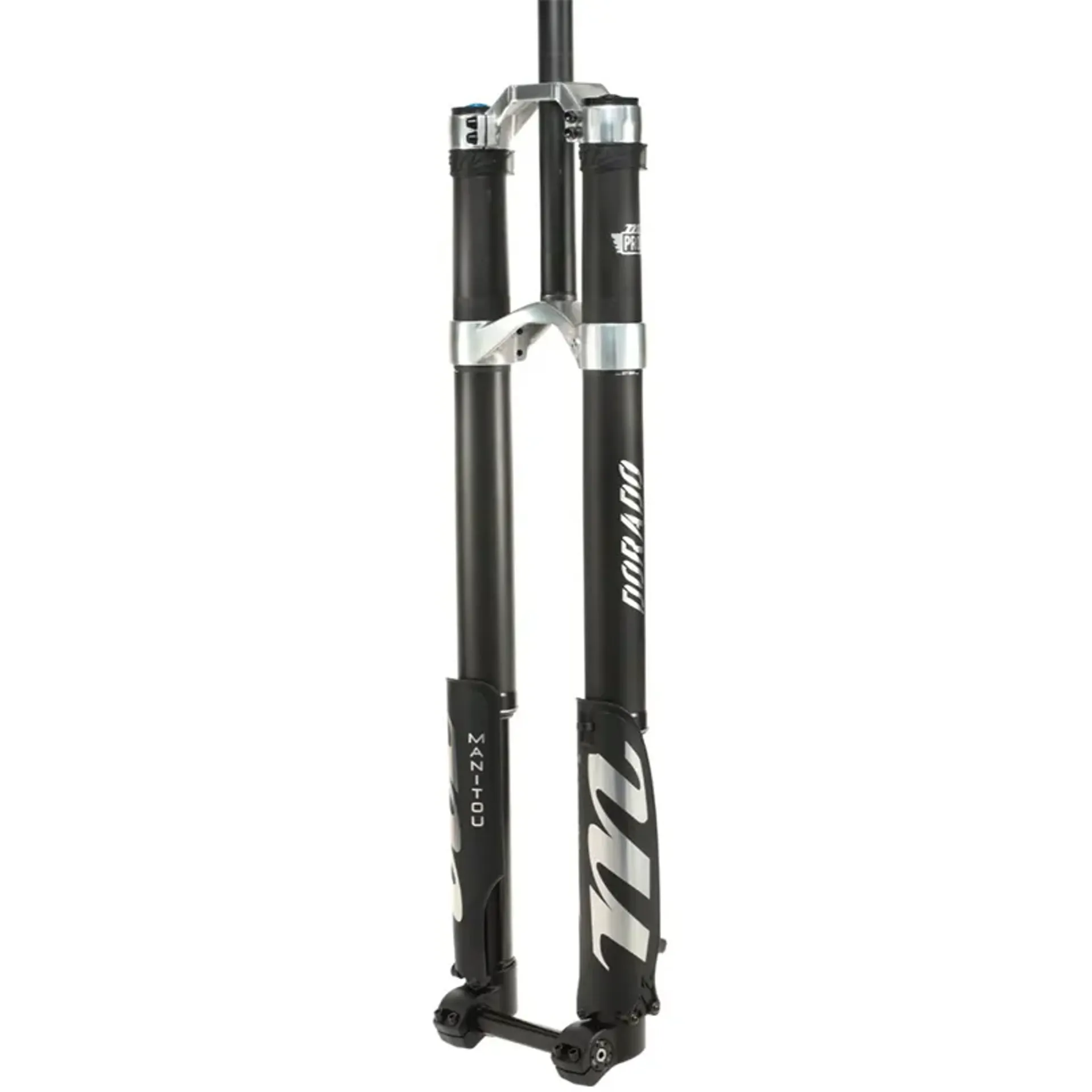

Manitou Dorado Pro 29 203mm - Black

£2,149.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
No Hassle Returns


Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.



To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:

  • Gift cards
  • Custom painted items
  • Items that have had custom decals fitted or frame protection
  • Custom built items such as wheels or bikes
  • Special order items
  • Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

  • Book with obvious signs of use.
  • CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
  • Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
  • Any item that is returned more than 30 days after delivery


Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@mechmonkey.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@mechmonkey.co.uk and send your item to: 2A Balmoral Link, Belfast, BT12 6QB, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: 2A Balmoral Link, Belfast, BT12 6QB, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

Manitou Dorado Pro 29 203mm - Black

Brand:Manitou

Code:KLBrpt-w92-orp-adarod-tmk

Legends never die

Back in a big way, the all-new dorado Pro is ready to turn the suspension world upside down. Featuring an inverted design, carbon upper structure, 37mm stanchions, and refreshed internals the new dorado Pro is the pinnacle of suspension technology. The new stiffer chassis is paired with an all-new sealed version of our tpc+ damper and improved dorado air spring with irt volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.

Features

Carbon fiber legs and the 37mm chassis result in the stiffest and lightest dorado to date. The carbon Pro chassis is 27% stiffer than the previous 36mm version and 238g lighter than the new 37mm expert version. They also have looks that can kill.

Inverted design provides an incredibly smooth and consistent feel due to constant lubrication of the bushings and seals. The inverted design also provides a major increase in fore-aft stiffness compared to traditional forks while maintaining torsional compliance which provides more control to the rider over rough terrain.

Dorado air spring system contains a unique balancing valve that equalizes the positive and negative air chambers during the air fill process resulting in a consistent feel without any flat or dead spots. It also allows easy travel adjustability from 180 to 190 and 203mm without the need for any spare parts.

Irt (infinite rate tune) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. Irt technology creates a secondary positive air spring that effects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up.

Sealed tpc+ is a velocity and position dependent damping circuit that maintains light damping thru small bumps when the fork is high in it's travel. As the fork compresses deeper in the travel the secondary tpc+ circuit engages and increased the damping force for added support and bottom-out prevention. Additionally, an independent hydraulic bottom-out circuit further increases the damping force in the final 30mm of travel to soften deep travel events and prevent hard bottom out. The new cartridge design with spring backed ifp fully seals damper oil for the most consistent damping on long demanding dh runs. Spring backed ifp has improved performance during extreme riding, unlike a bladder an ifp pressurizes the oil at the initial stroke eliminating any cavitation for the most consistent damping.

Fits both 29" and 27.5" wheels. Markings on the outer legs indicate the proper clamping point for ideal axle to crown measurements depending on wheelsize. The fork legs can be used with both wheel sizes.

Two crown options are available with this fork. The 47 offset is designed to work with 27.5" wheels and intended axle to crown. The 57 offset crown is designed for 29" wheels and axle to crown. For those looking to run the lower offset crown with 29" wheels please reference our fit document to see if your headtube length is compatible.

Tsr bleed buttons allow you to release excess pressures built up in the outer legs of your fork with a simple tap of the button. This keeps your fork smooth and supple all day long.

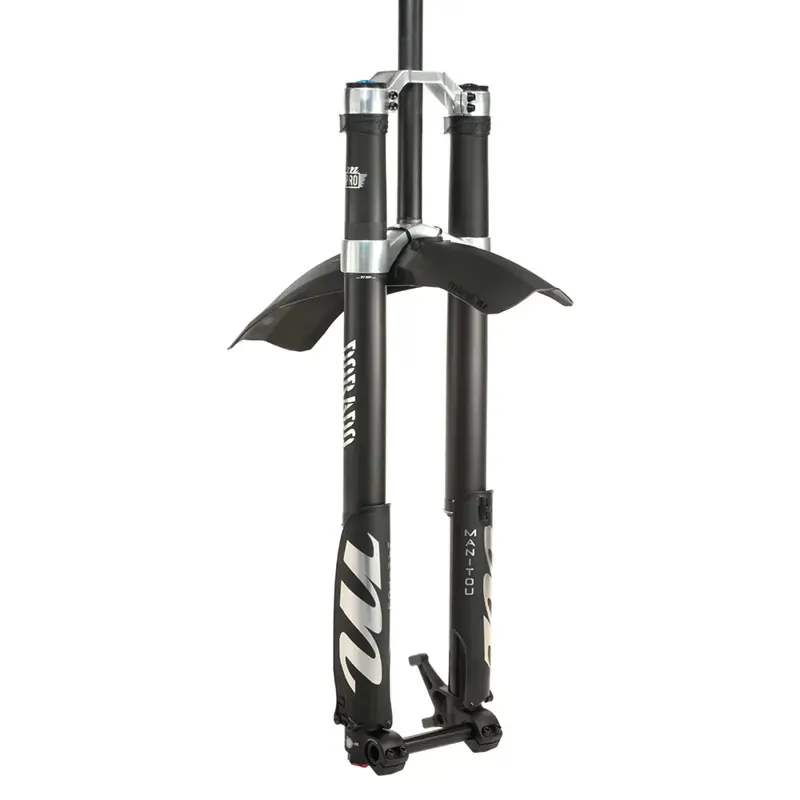

New direct mount fender is reversible, allowing for two orientations "moto" for increased front of fork coverage, "bike" for increased behind fork coverage.

New 2 bolt drop crown features increased head tube length capability with 29" wheels.

Developed in both the lab and via collaboration with our world cup athletes to ensure maximum torsional stiffness of the dorado 37 chassis.

Specifications

  • Wheel size: 27.5", 29"
  • Offset: 47mm flat crown (27.5"), 57mm drop crown (29'')
  • Ride height: 582mm (27.5"), 602mm (29'')
  • Travel: 180, 190, 203mm internally adjustable
  • Spring: dorado air with infinite rate tune (irt)
  • Compression damping: sealed cartridge tpc+ with hydraulic bottom out (hbo)
  • Rebound damping: sealed cartridge tpc
  • Adjustments: air, irt, rebound, hs, and ls compression
  • Steerer: 1-1/8" straight
  • Crown: forged
  • Outer leg material: carbon
  • Leg diameter: 37mm
  • Leg material: 6000 series aluminum
  • Brake post mount: 203mm (223 max)
  • Axle: 110mm x 20mm boost thru axle
  • Max tyre size: 67mm
  • Extras: threaded tsr buttons
  • Options: fender
  • E-bike compatible: no
  • Weight: 2970g
