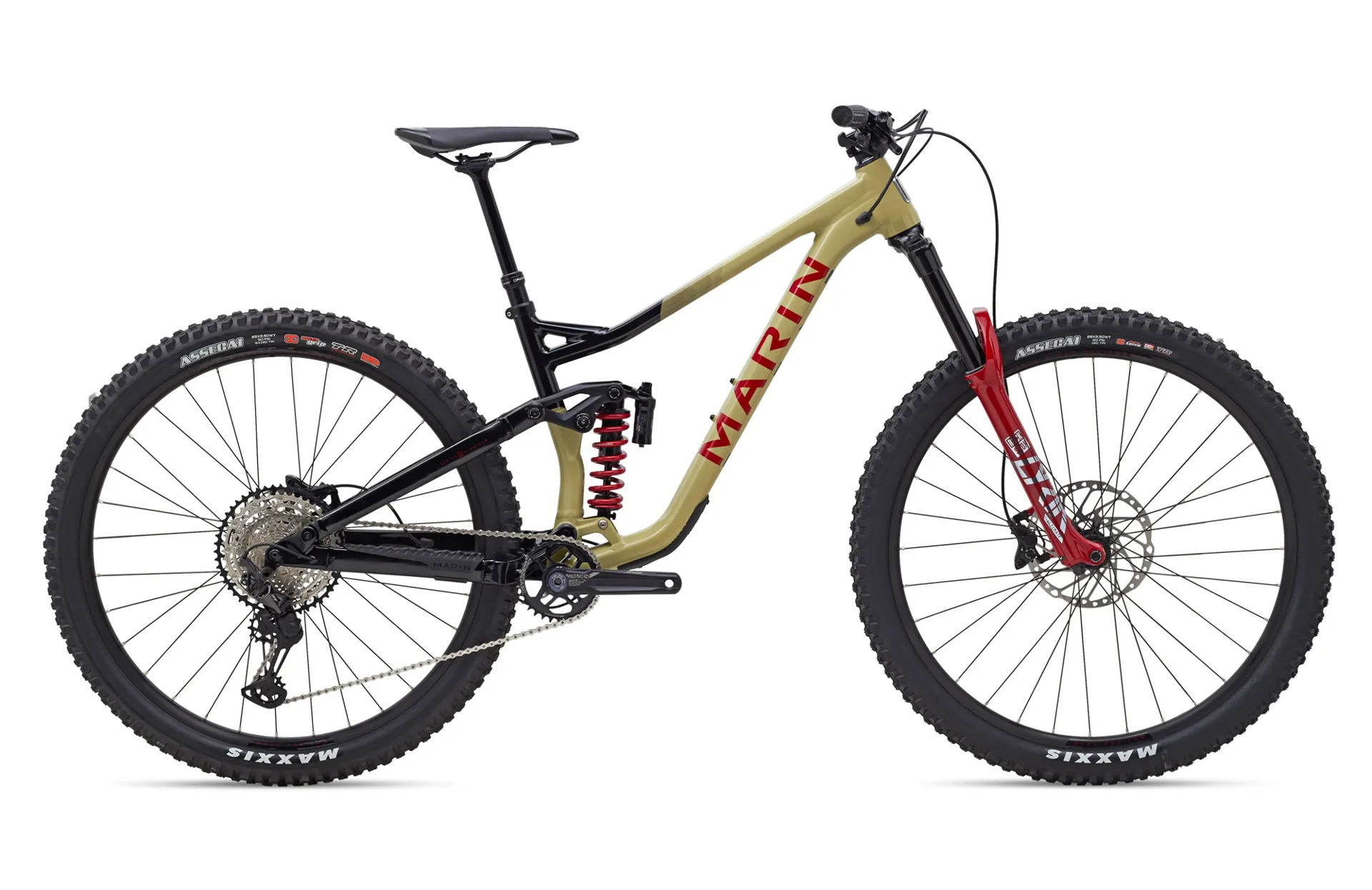

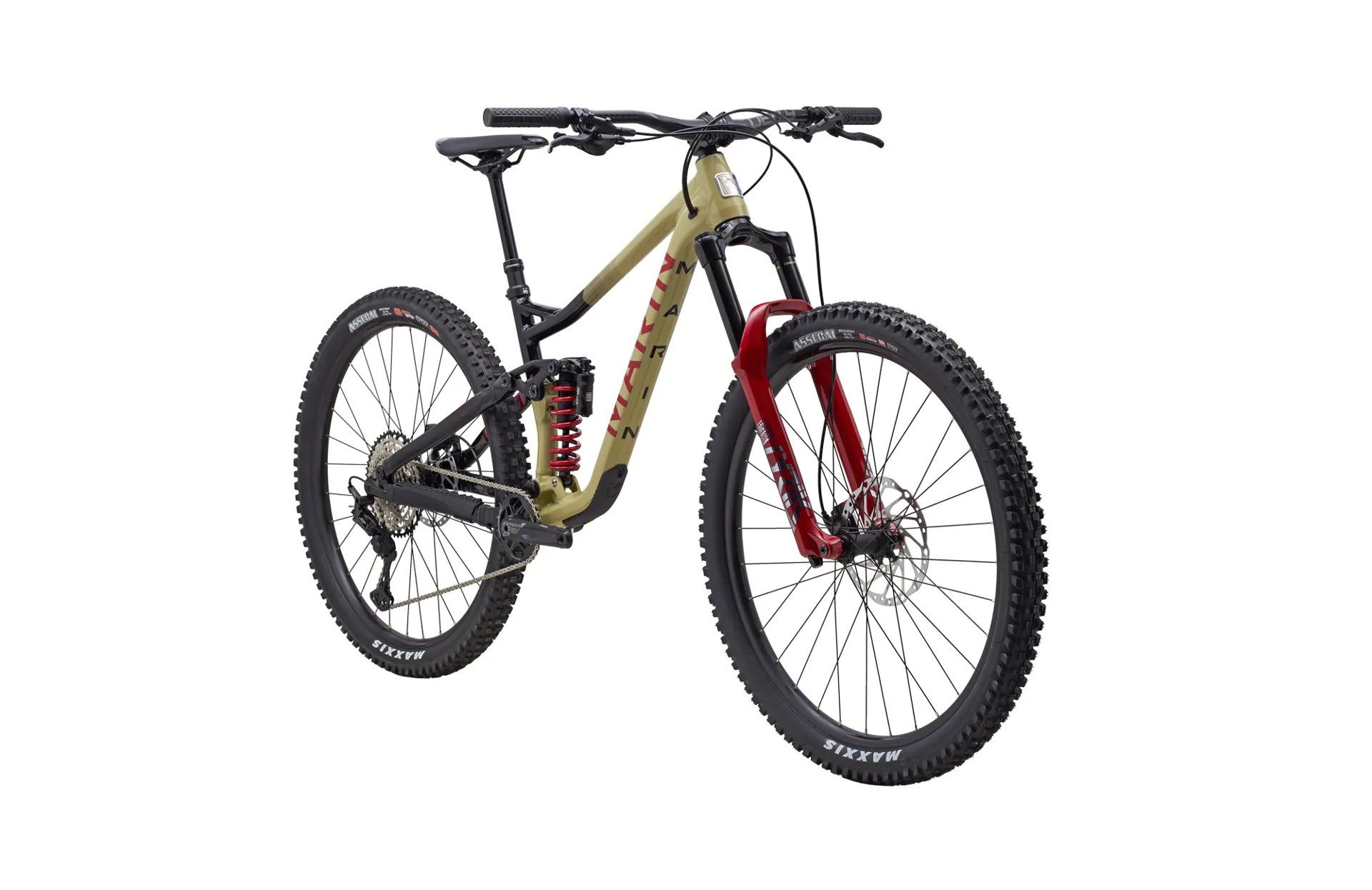

Marin Alpine Trail XR

Season:2021

Brand:Marin

Code:MATXR

Big all-mountain days where travel and geometry matter most.

• Built for abuse and rowdy riding
• Enduro-style riding and racing
• Big bike, big wheels, big fun

The Alpine Trail is a 29” wheeled full suspension bike built for the all-day enduro rider that earns their downhill fun.

Series 4 Aluminium Frame

Alpine Trail models feature Series 4 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

Bridgeless Seatstay

The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.

Modern Angles

The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.

Key upgrades from Alpine Trail 7:
  • RockShox Lyrik Ultimate/Super Deluxe coil suspension
  • Shimano SLX/XT drivetrain
  • FSA Gradient crankset
Technical Information
  • Frame
    Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Rear Shock
    Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 450lb)
  • Fork
    RockShox Lyrik Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
  • Headset
    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Stem
    Race Face Affect R 35, 50mm
  • Handlebar
    Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back
  • Grips
    Marin Single Clamp Locking
  • Saddle
    Marin Speed Concept
  • Seatpost
    X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
  • Brakes
    Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm & 180mm Rotor
  • Shifter
    Shimano SLX 12-Speed, I-Spec EV
  • Derailleur
    Shimano XT 12-Speed, SGS
  • Cassette
    Shimano SLX M7100 Cassette, 12-Speed, 10-51T
  • Chain
    KMC X-12 Silver and Black
  • Crank
    FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
  • Wheelset
    Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
    Rear Hub: Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
    Front Hub: Shimano HF-MT410B, 110x15mm, Center\lock
  • Tyres
    Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible
  • Bottom Bracket
    MEGAEVO BB, 73mm BSA Threaded
Sizing Information




S

M

L

XL

A

STACK

619

628

632

643

B

REACH

430

455

480

515

C

HEADTUBE ANGLE

63.5°

63.5°

63.5°

63.5°

D

HEADTUBE LENGTH

100

110

115

130

E

SEATTUBE ANGLE

78°

78°

78°

78°

F

SEATTUBE LENGTH

390

400

425

430

G

TOPTUBE EFFECTIVE

561.7

589

615

652

H

BB HEIGHT

342

342

342

342

I

BB DROP

35

35

35

35

J

CHAINSTAY

430

430

430

430

K

WHEELBASE

1199

1229

1256

1297

L

STANDOVER HEIGHT

714

716

732

734

M

FORK OFFSET

44

44

44

44

SEATPOST DIAMETER

30.9

30.9

30.9

30.9

HANDLEBAR WIDTH

780

780

780

780

STEM LENGTH

35

35

35

35

CRANK LENGTH

170

170

170


170







S

M

L

XL

A

STACK

619

628

632

643

B

REACH

430

455

480

515

C

HEADTUBE ANGLE

63.5°

63.5°

63.5°

63.5°

D

HEADTUBE LENGTH

100

110

115

130

E

SEATTUBE ANGLE

78°

78°

78°

78°

F

SEATTUBE LENGTH

390

400

425

430

G

TOPTUBE EFFECTIVE

561.7

589

615

652

H

BB HEIGHT

342

342

342

342

I

BB DROP

35

35

35

35

J

CHAINSTAY

430

430

430

430

K

WHEELBASE

1199

1229

1256

1297

L

STANDOVER HEIGHT

714

716

732

734

M

FORK OFFSET

44

44

44

44

SEATPOST DIAMETER

30.9

30.9

30.9

30.9

HANDLEBAR WIDTH

780

780

780

780

STEM LENGTH

35

35

35

35

CRANK LENGTH

170

170

170


170



Bike sizing has an element of personal preference to take into account. A larger bike will take a bit more effort to manoeuvre but will feel more stable at speed. The Marin Alpine Trail has a low standover height, giving customers more freedom when choosing a frame size. A basic sizing guide can be seen below:

Small- 5'3" to 5'6"
Medium- 5'6" to 5'10"
Large- 5'9" to 6'1"
X-Large- 6'1" to 6'4"
