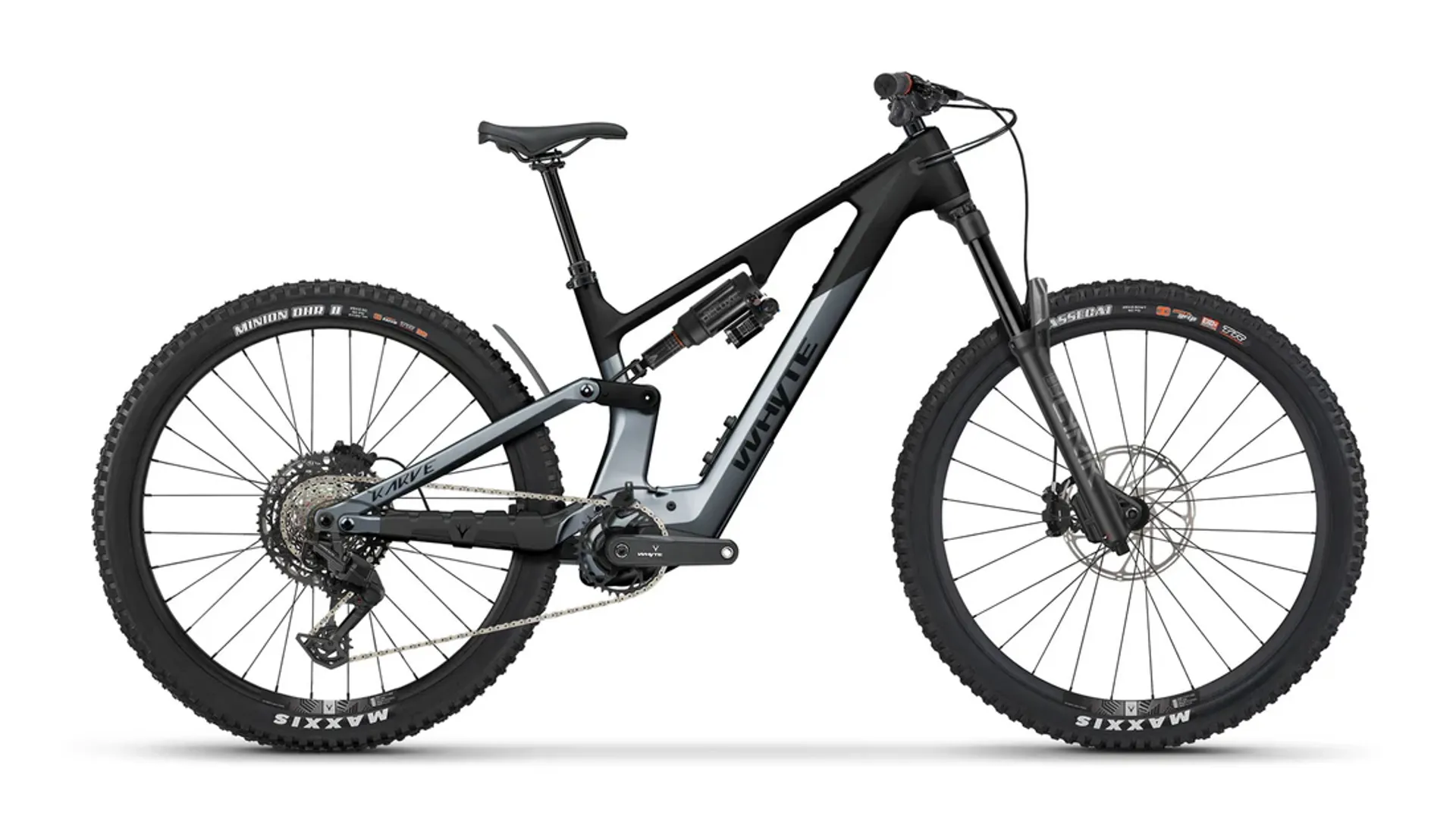

Whyte Karve RS

Season:2026

Brand:Whyte Bikes

Code:WTKRVRS

Furiously fast, powerfully capable
Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider.Confident and highly capable, it’s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 –and keep it there.

Highlights
– 160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
– Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
– Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
– SRAM Eagle 90 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
– Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
– 800Wh internal battery so you can ride further.
– 29in trail-smoothing wheels front and rear + MX ready.

Ideal for...Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills –everywhere.

Charge time (800Wh): 80% in 4hr 54mins approx. from empty, and to 100% in 6hrs 11mins approx. with 4A charger.

Technical Information

Specifications

COLOUR	TBC	CASSETTE	SRAM XS 1270, T-Type, 10-52T, 12 speed
FRAME	Uni-directional carbon mainframe, tapered head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts	CHAIN	SRAM Eagle 70, 12 speed
FORK	RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth	CRANKSET	Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
REAR SHOCK	RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte	BOTTOM BRACKET	N/A
HEADSET	FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings	SEATPOST	TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
REAR HUB	Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub	SEAT	Whyte Custom
FRONT HUB	Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole	BAR	Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
SPOKES	14g stainless black, brass nipples	STEM	Whyte, 35mm extension, 35mm bar bore
RIMS	Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear	GRIPS	Whyte Enduro lock-on
TYRES	Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)	BRAKES FRONT	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor
SHIFT LEVERS	SRAM Eagle 70, 12 speed	BRAKES REAR	SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor
FRONT MECH	N/A	BRAKE LEVERS	SRAM Maven Base
REAR MECH	SRAM Eagle 90 T-Type mechanical, 12 speed	PEDALS	Fibre reinforced composite platform
WEIGHT	TBC

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

eBike Specifications

DRIVE UNIT	Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
BATTERY	Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
DISPLAY	Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
CHARGER	Charger 4A (230V)

Sizing Information

Geometry

FRAME SIZE	Small	Medium	Large	Extra Large
A - REACH (mm)	444	469	494	519
B - STACK (mm)	615.2	626	636.7	651.1
C - HEAD ANGLE (° degrees)	64 / 63.4	64 / 63.4	64 / 63.4	64 / 63.4
D - SEAT ANGLE (° degrees)	79	78.6	78.3	77.9
E - BB HEIGHT (mm)	350.8	350.8	350.8	350.8
F - WHEELBASE (mm)	1220.2	1250.5	1290.8	1333
G - REAR CENTRE (mm)	445	445	455	465
H - STANDOVER HEIGHT (mm)	795	795	795	795
I - SEAT TUBE LENGTH (mm)	395	420	445	470
J - HEAD TUBE LENGTH (mm)	97	109	121	137
