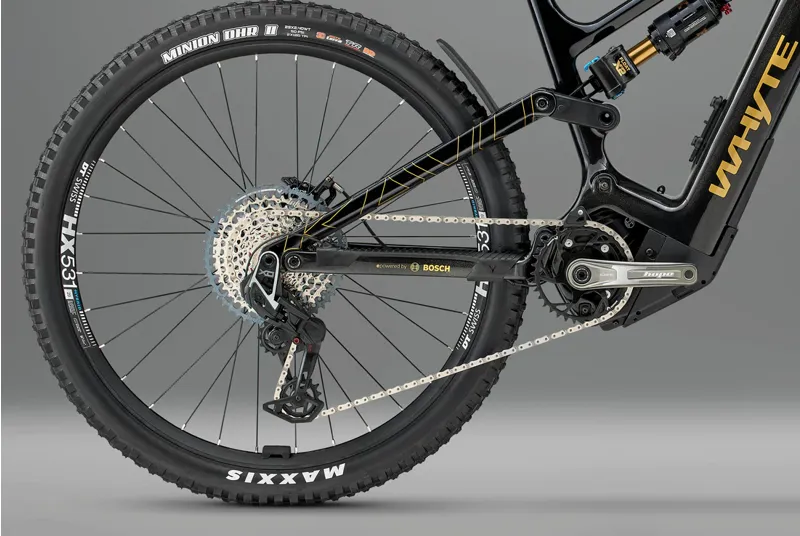

| COLOUR | Gun metal black (gloss) | CASSETTE | SRAM XS 1275, T-Type, 10-52T, 12 speed |
|---|

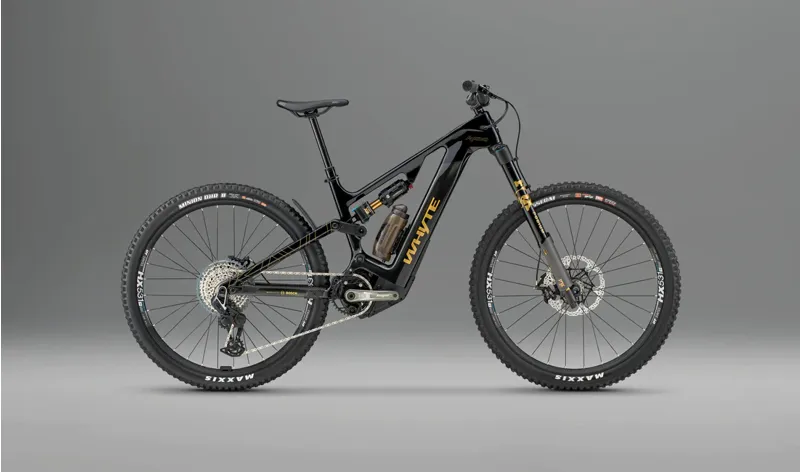

| FRAME | Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM GX T-Type, 12 speed |
|---|

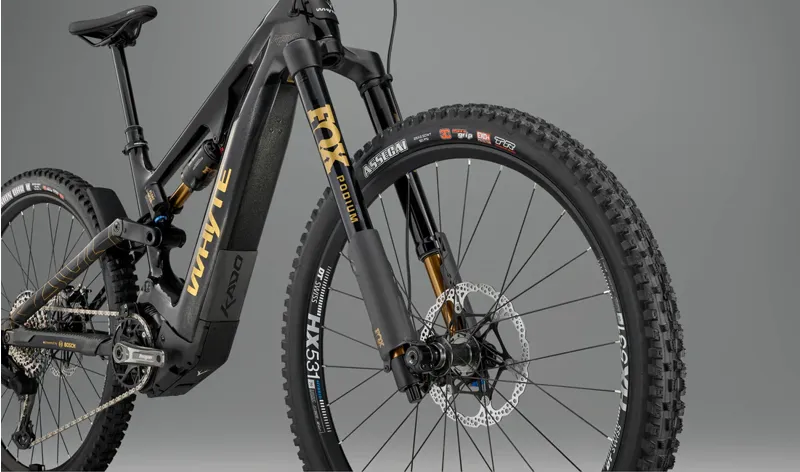

| FORK | 2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle | CRANKSET | Hope E-Bike cranks, 155mm long, Bosch mounting, 36T chainring T-Type |
|---|

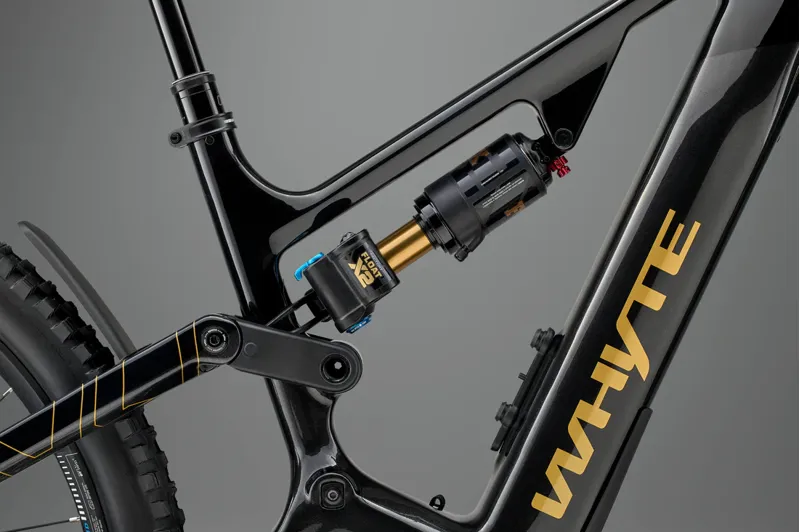

| REAR SHOCK | Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte | BOTTOM BRACKET | N/A |
|---|

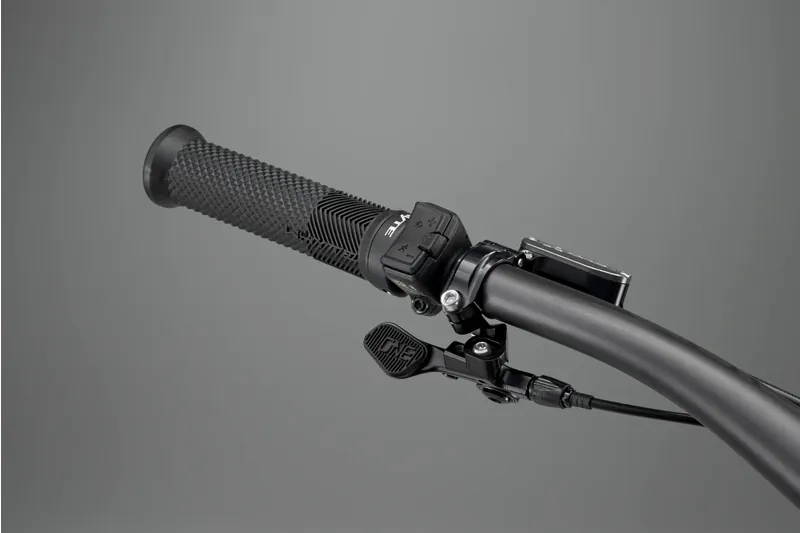

| HEADSET | FSA No. 55R, 1-1/8in upper and 1.5in lower | SEATPOST | One Up Components V3 dropper post, with frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 210mm drop), and MMX Paddle remote lever |
|---|
| REAR HUB | Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole | SEAT | Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
|---|
| FRONT HUB | Hope Pro 5, six bolt, 20mm x 110mm Boost spacing, 28 hole | BAR | Race Face ERA Carbon, 20mm rise (sizes S/M) / 40mm rise (sizes L/XL), 35mm bar bore, 800mm wide |
|---|
| SPOKES | DT Swiss Elemental | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
|---|
| RIMS | DT HX531, 30mm internal width | GRIPS | Whyte Enduro lock-on |
|---|
| TYRES | Maxxis Assigai WT, TR, 29 x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound (rear) | BRAKES FRONT | Hope EVO GR4, four piston hydraulic disc brakes, 220mm floating rotor |
|---|

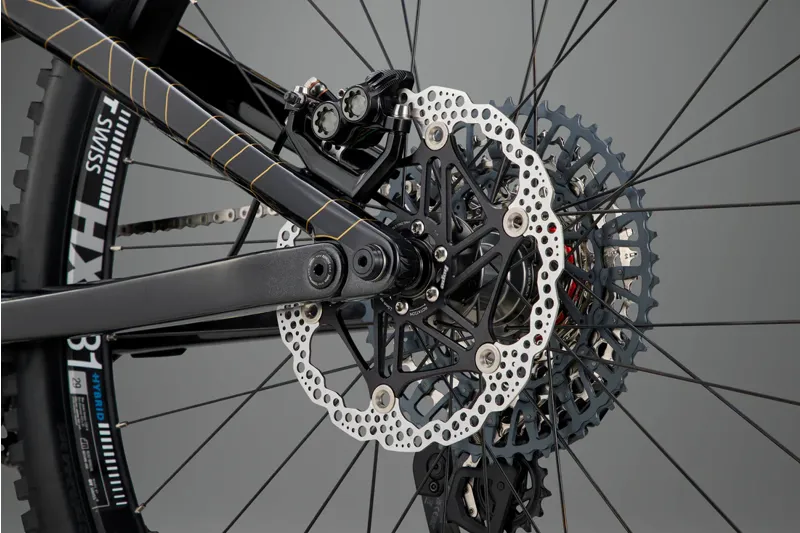

| SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | Hope EVO GR4, four piston hydraulic disc brakes, 200mm floating rotor |
|---|

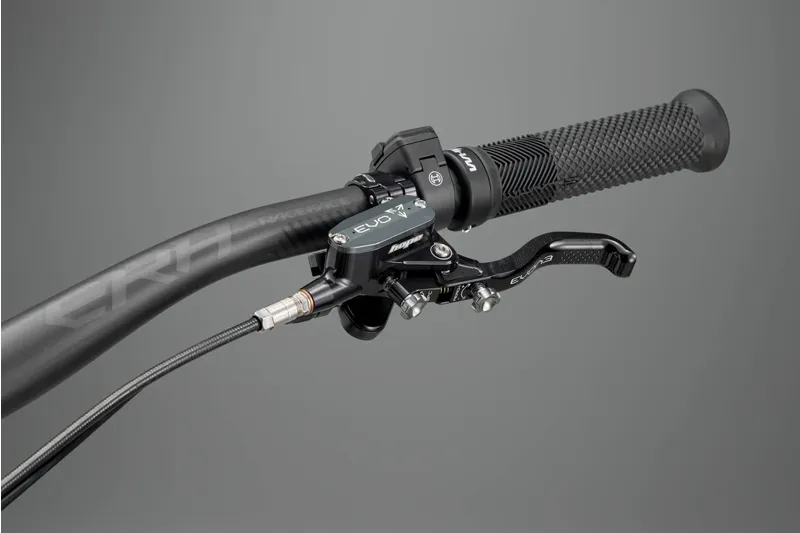

| FRONT MECH | N/A | BRAKE LEVERS | Hope EVO GR4 |
|---|

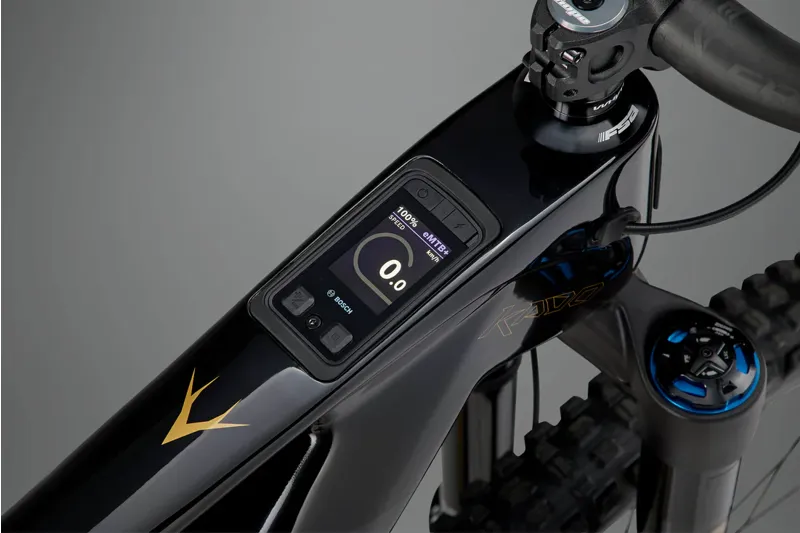

| REAR MECH | SRAM XO T-Type AXS, 12 speed, powered off the Bosch CX motor system’s internal battery | PEDALS | Fibre reinforced composite platform |
|---|
| WEIGHT | 24.4Kg (size M, without pedals, with innertubes) | | |
|---|
