ELyte EVO RS: time saver, fun maker.
ELyte EVO RS: time saver, fun maker.
Whyte Bikes

Whyte ELyte Evo RS

£5,699.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
No Hassle Returns


Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.



To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:

  • Gift cards
  • Custom painted items
  • Items that have had custom decals fitted or frame protection
  • Custom built items such as wheels or bikes
  • Special order items
  • Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

  • Book with obvious signs of use.
  • CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
  • Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
  • Any item that is returned more than 30 days after delivery


Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@mechmonkey.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@mechmonkey.co.uk and send your item to: 2A Balmoral Link, Belfast, BT12 6QB, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: 2A Balmoral Link, Belfast, BT12 6QB, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

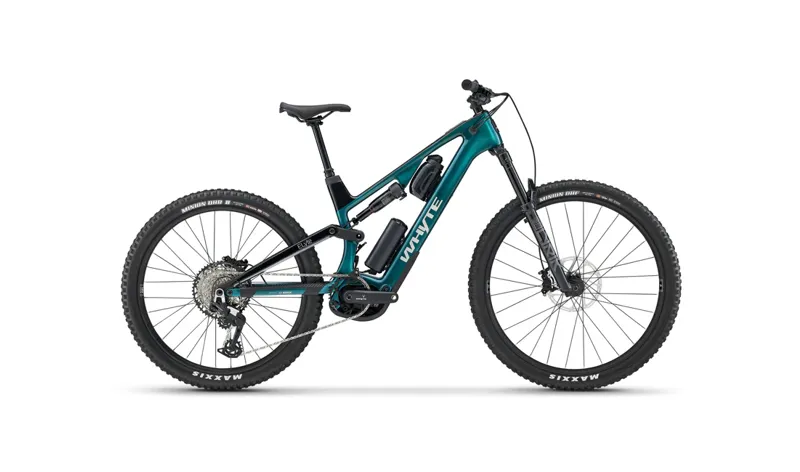

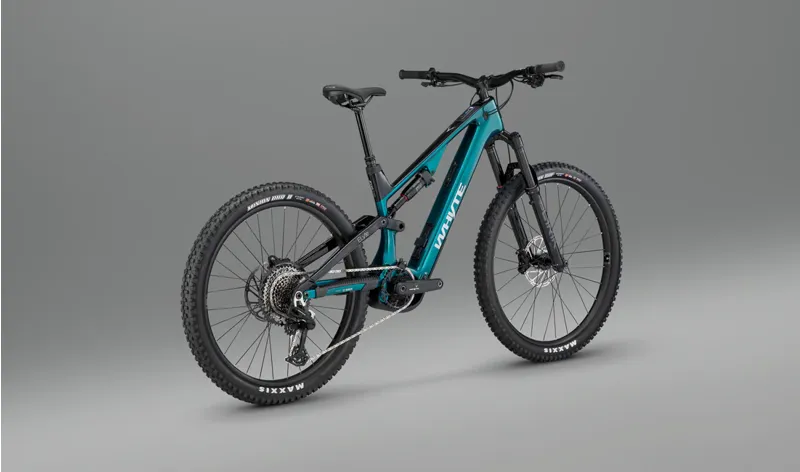

Whyte ELyte Evo RS

Season:2026

Brand:Whyte Bikes

Code:WTELEVORS

Get more from every ride
Our latest full-power, full-torque – all the time – ELyte EVO RS will help you make the most of your precious time, every ride: go farther, faster; enjoy more fun trails; hone your skills; explore further, and grow in confidence. With a full carbon frame, a super low centre of gravity for the finest, most capable handling, and the latest Bosch CX motor, ELyte EVO RS will inspire you with the very best mountain bike ride feel with full-power capability. All so you can get more out of every ride.

Highlights
– 150mm front + 142mm rear of custom-tuned suspension travel.
– Uni-directional carbon fibre frame is light and reassuringly strong.
– Bosch's fifth generation Performance Line CX full-torque full-power motor
– Ready for the latest software upgrade to unlock E-MTB+ mode (July 2025), plus 100Nm torque + 750W peak power (available October 2025).
– 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
– MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain.
– 505.07mm complete bike centre of gravity for the best handling possible.

Components that perform ride after ride
The ELyte EVO RS is dressed in a curated parts list of trail-proven, real-world kit that performs out of the box and as well as for the long haul: RockShox Lyrik Select+ fork and Deluxe Select+ rear shock deliver exceptional rough terrain control; SRAM Eagle T-Type 1x12 gearing, Maxxis tyres, feedback-rich SRAM DB8 four-piston brakes, and more. Our own custom suspension from RockShox has also been meticulously tuned to deliver you outstanding, ground-hugging grip with the support you need right from your first pedal stroke.

Charge time:50% in 1.5hrs from empty, and to 100% in 3.5hrs.

ELyte EVO RS: time saver, fun maker.

Get more from your motor

Every ELyte EVO is ready for the latest Bosch software upgrades to unlock the new E-MTB+ mode (from 15th July 2025), plus 100Nm torque + 750W peak power (available from October 2025). Just update your bike’s software for free in Bosch's eBike Flow app or at your local Whyte retailer

A lightweight, low mass chassis

The beating heart of the ELyte EVO RS is a lightweight yet strong carbon fibre chassis that carefully packages Bosch's powerful Performance Line CX full-torque, full power motor – and the 400Wh internal battery – seamlessly together with the 250Wh PowerMore range extender as low as possible to deliver you the finest handling and most confidence-inspiring ride in every situation – whether you’re running the PowerMore or not.

Refined Bosch performance

Bosch’s all-new Performance Line CX full-torque, full-power motor is quieter, lighter, and even more refined than ever before. Delivering up to 400% support – that’s 4x you – even at low cadences, it offers the best balance of power, control and range to help get the most from your riding. Add in Bosch’s market-leading reliability, a global network of service centres, and the companion eBike Flow app which lets you get even more from your riding, and you’re all set to ride like a Bosch.

Have your bike, your way

Want more or less battery? It comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position – so you can choose to run just the 400Wh internal battery for 'power-hour' rides, or a with the PowerMore and take on longer rides with a combined 650Wh of battery capacity . Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 450ml bottle (on sizes M-XL) – even with the PowerMore in place. Want to slacken the geometry out? The ‘Shape.it Link’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins.


Technical Information

Specifications

COLOURAquamarine (gloss)CASSETTESRAM XS 1270, T-Type, 10-52T, 12 speed
FRAMEUni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropoutsCHAINSRAM GX T-Type, 12 speed

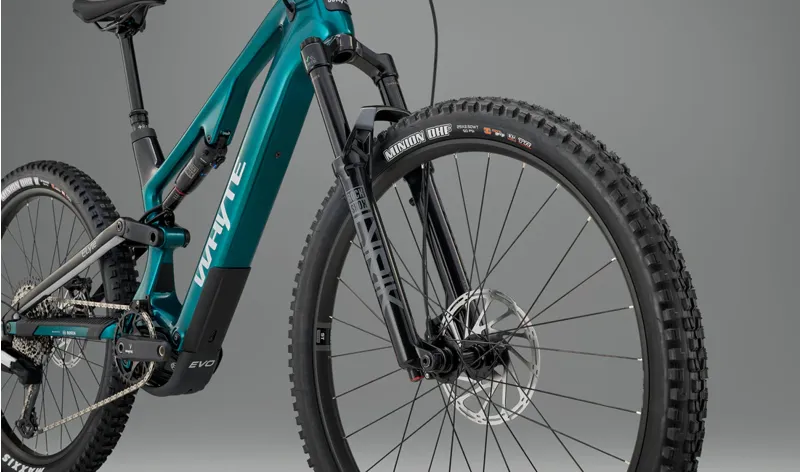

FORKRockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 damper, Fast Black coating, tapered steerer, 110 x 15mm BoostCRANKSETWhyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type

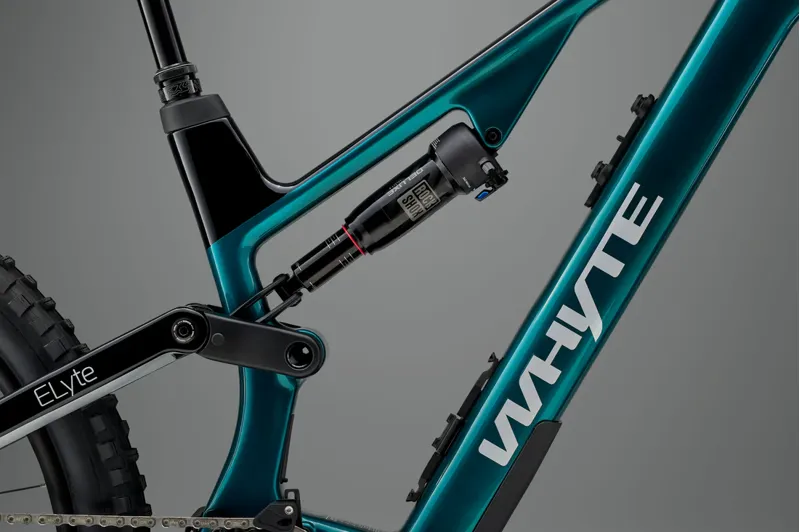

REAR SHOCKRockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, 210 x 50mm, custom tuned for WhyteBOTTOM BRACKETN/A
HEADSETFSA No. 55R, 1-1/8in upper and 1.5in lowerSEATPOSTTranzX +RAD adjustable dropper post, 30.9mm, frame size specific drop (size S 125mm drop; size M 150mm drop; size L 170mm drop; size XL 200mm drop)
REAR HUBAlloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 holeSEATWhyte Custom
FRONT HUBAlloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 holeBARWhyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
SPOKESDT Swiss ElementalSTEMWhyte Trail, 35mm extension, 35mm bar bore
RIMSWTB ST Tough 29in (front), HTZ Trail 27.5in (rear), 30mm internal widthGRIPSWhyte Enduro lock-on

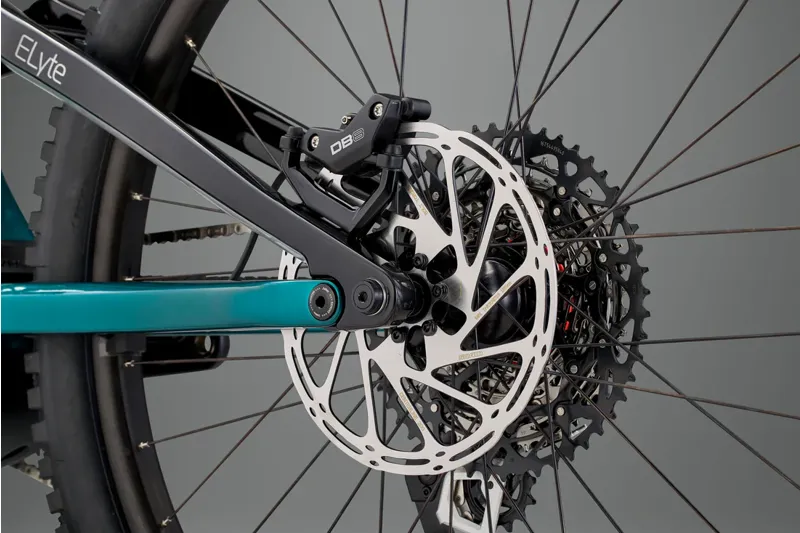

TYRESMaxxis Minion DHF, EXO TR MaxxGrip 29 x 2.5in (front); Maxxis Minion DHR II, EXO+ TR MaxxTerra 27.5 x 2.5in (rear)BRAKES FRONTSRAM DB8, four piston hydraulic disc brake, 200mm rotor
SHIFT LEVERSSRAM Eagle 90 mechanical, 12 speedBRAKES REARSRAM DB8, four piston hydraulic disc brake, 200mm rotor

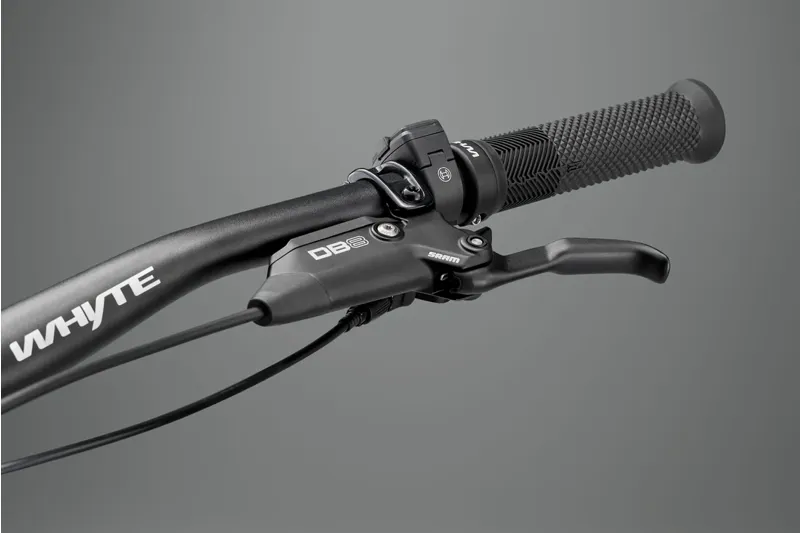

FRONT MECHN/ABRAKE LEVERSSRAM DB8

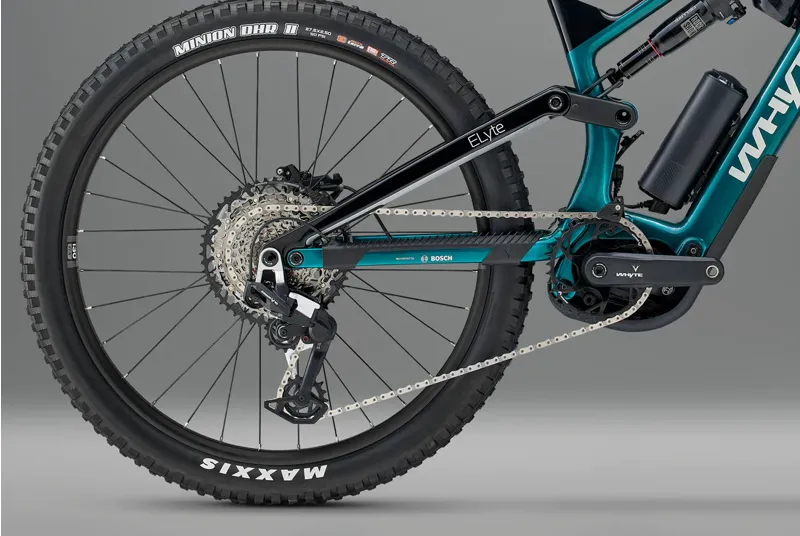

REAR MECHSRAM Eagle 90 T-Type mechanical, 12 speedPEDALSFibre reinforced composite platform
WEIGHT20.9kg (size M, with innertubes + without pedals or PowerMore)

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

eBike Specifications

DRIVE UNITBosch Performance Line CX (Smart System) drive unit with 100Nm maximum torque, 600W of peak power (rising to 750W in October 2025 via a software update) and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+.
BATTERYBosch Compact PowerTube 400Wh, integrated within the downtube of the frame at the lowest point for stability and control. Also comes with the external, removable 250Wh PowerMore range extender to deliver a combined 650Wh of battery capacity.

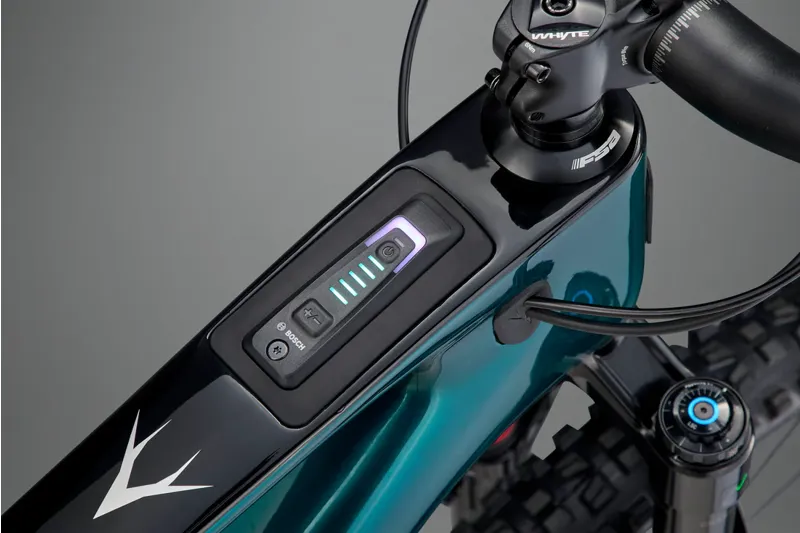

DISPLAYBosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGERCharger 4A (230V)

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike

Sizing Information

Geometry

FRAME SIZESmallMediumLargeExtra Large
A - REACH (mm)431456481506
B - STACK (mm)628.7640.5652.3663.2
C - HEAD ANGLE (° degrees)64.6 (64)64.6 (64)64.6 (64)64.6 (64)
D - SEAT ANGLE (° degrees)77.577.377.176.9
E - BB HEIGHT (mm)341.9 (333.9)341.9 (333.9)341.9 (333.9)341.9 (333.9)
F - WHEELBASE (mm)1211.61242.11272.61302.7
G - REAR CENTRE (mm)450.4450.4450.4450.4
H - STANDOVER HEIGHT (mm)741741741741
I - SEAT TUBE LENGTH (mm)395420445470
J - HEAD TUBE LENGTH (mm)114127140152


Size Guide - Recommended based on your height.
