Ex-Demo Amflow PL Carbon 800WH - Large

Season:2026

Brand:Amflow

Code:EXDEMOAMPLL

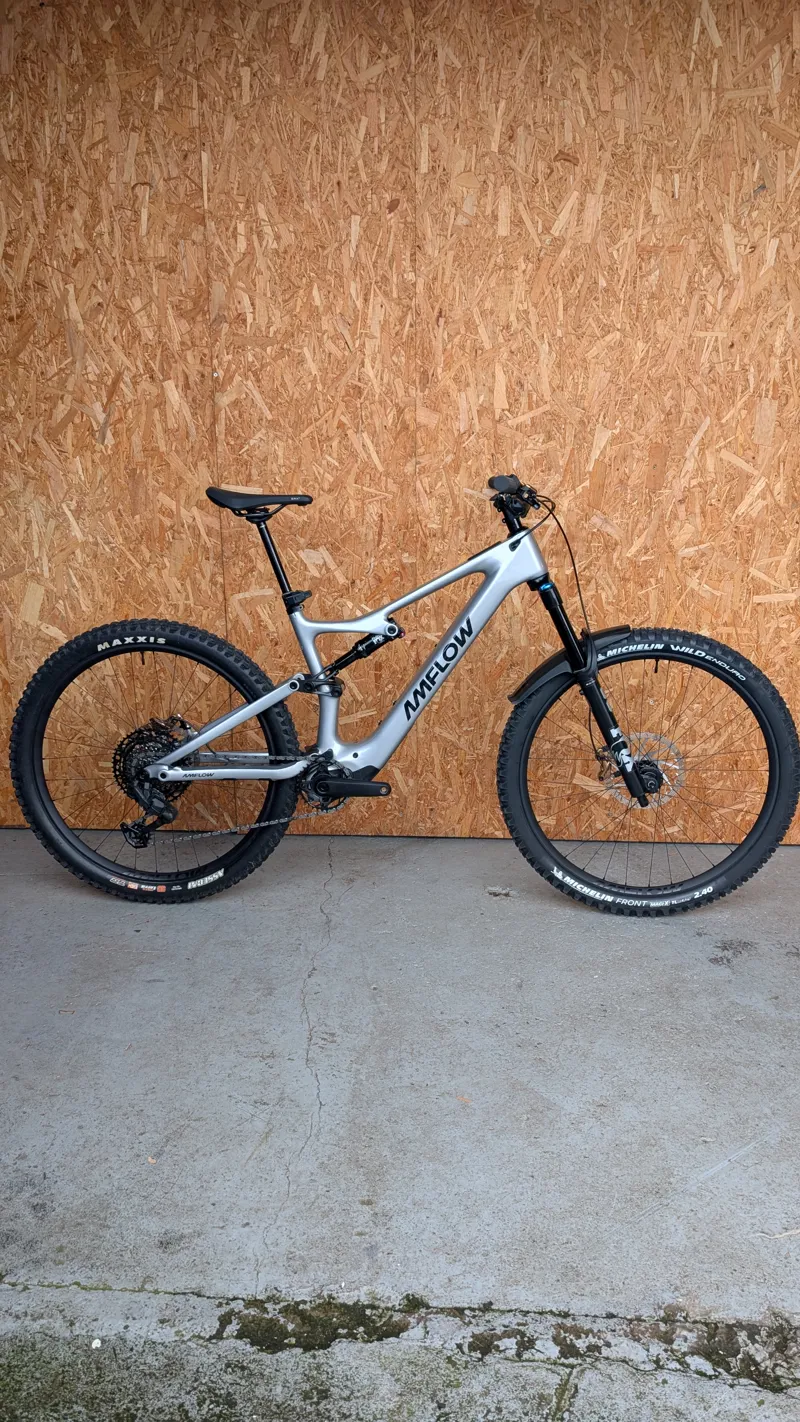

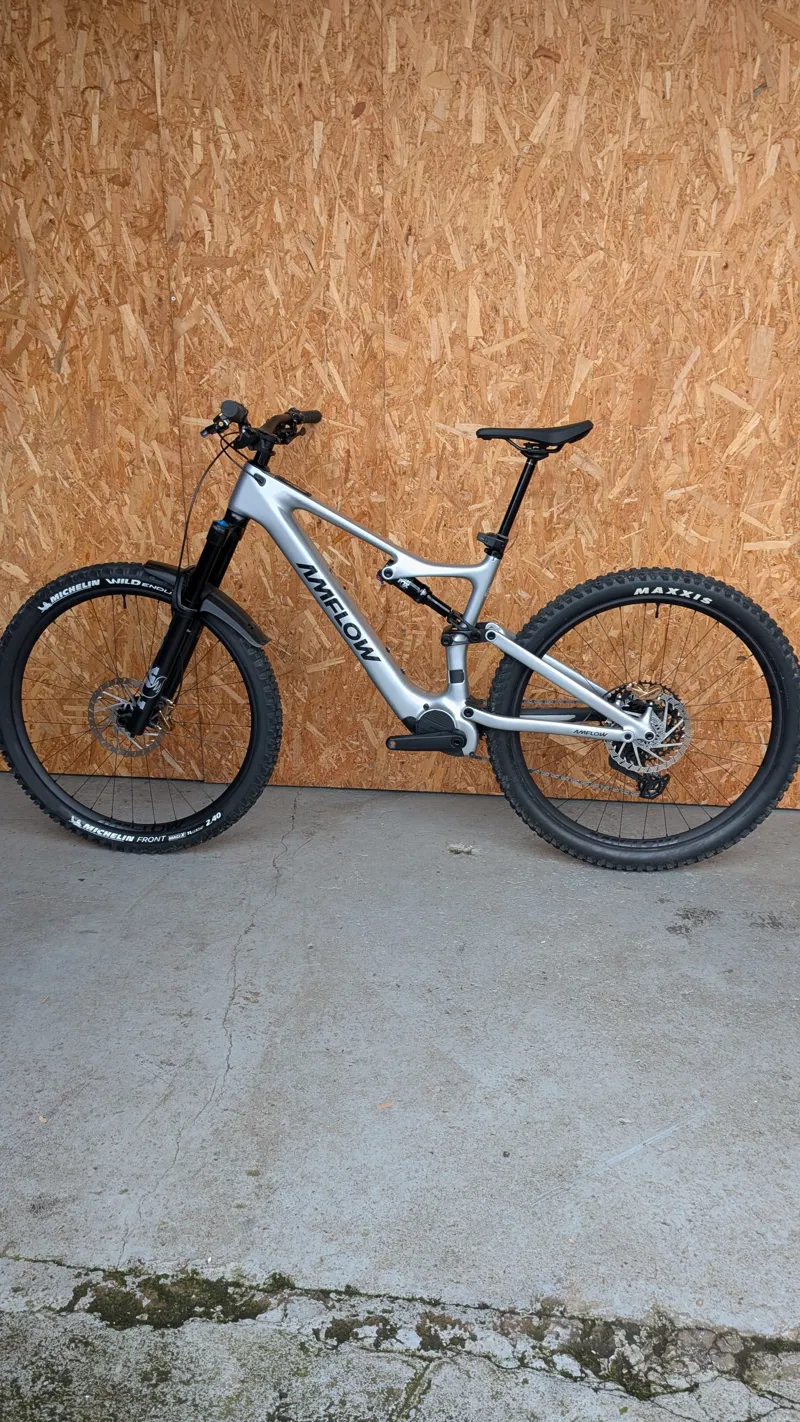

AMFlow PL Carbon, in size Large and with 29 wheels and an 800wh battery!

Our AMFlow demo bike is going up for sale. This is a size Large and with 29 wheels. Fully Invisiframed from new and under 400 miles on the clock makes this an absolute bargain for what is basically a brand new bike. Our demo bikes are meticulously maintained with a full clean down and inspection after every ride. See the photos above for full details. This bike has had a few upgrades as listed at the bottom of the description. The bike is sold with full manufacturers warranty cover which begins on your date of purchase.

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

Max Continuous Torque -
105 N·m
M1 Drive Unit Weight -2.52 kg
Peak Power -1000 W

For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

The Avinox Drive System's battery weighs just 2.87 kg and features ultra-high energy density for extended range. The palm-sized fast charger is capable of charging the battery from 0% to 75% in just 1.5hours. 0% to 75% in 1.5 hours

Amflow PL is compatible with both 29 and 27.5-inchrear wheels.By adjusting the flip chips, you can accommodate both sizes without altering the frame's geometric center of gravity. Whether you want to hone your technical skills or simply enjoy high speeds, Amflow PL is ready to ride.

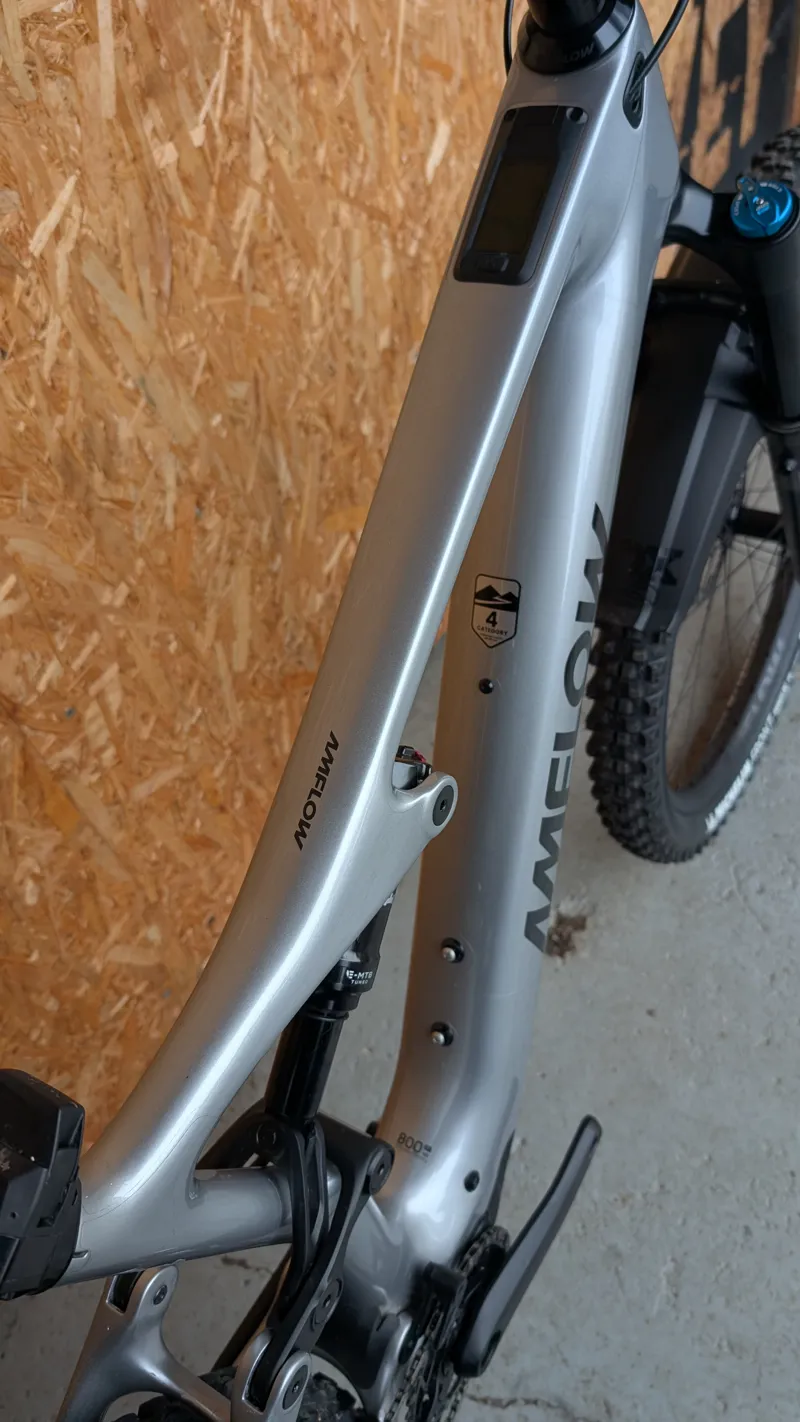

The brain of the DJI Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.
Dual Wireless Controllers, Essential Features at Your Fingertips, The Bluetooth-enabled Wireless Controllers connect to the Control Display, allowing convenient assist mode switches while riding.

With the Control Display or the Avinox app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate,and more. This data can also be easily synced with Strava.

Dual Wireless Controllers, Essential Features at Your Fingertips
The Bluetooth-enabled Wireless Controllers connect to the Control Display, allowing convenient assist mode switches while riding.

With the Control Display or the Avinox app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate,and more. This data can also be easily synced with Strava.

Size Large, Bike was Invisiframed from new, Both Frame and Fork.
Specs are as Standard 2026 Forks and Shocks, Sram Eagle 70/90 T-type with a few upgrades as follows

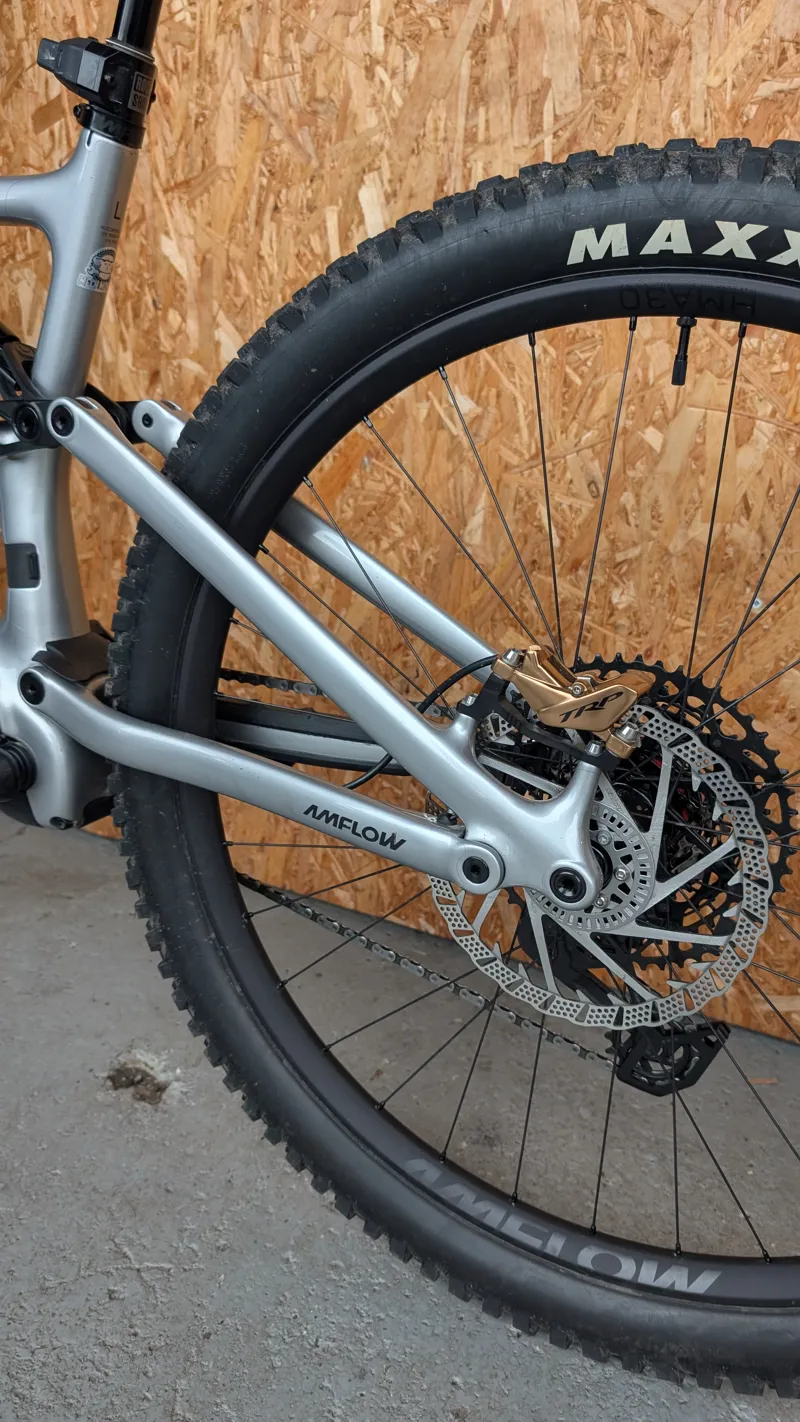

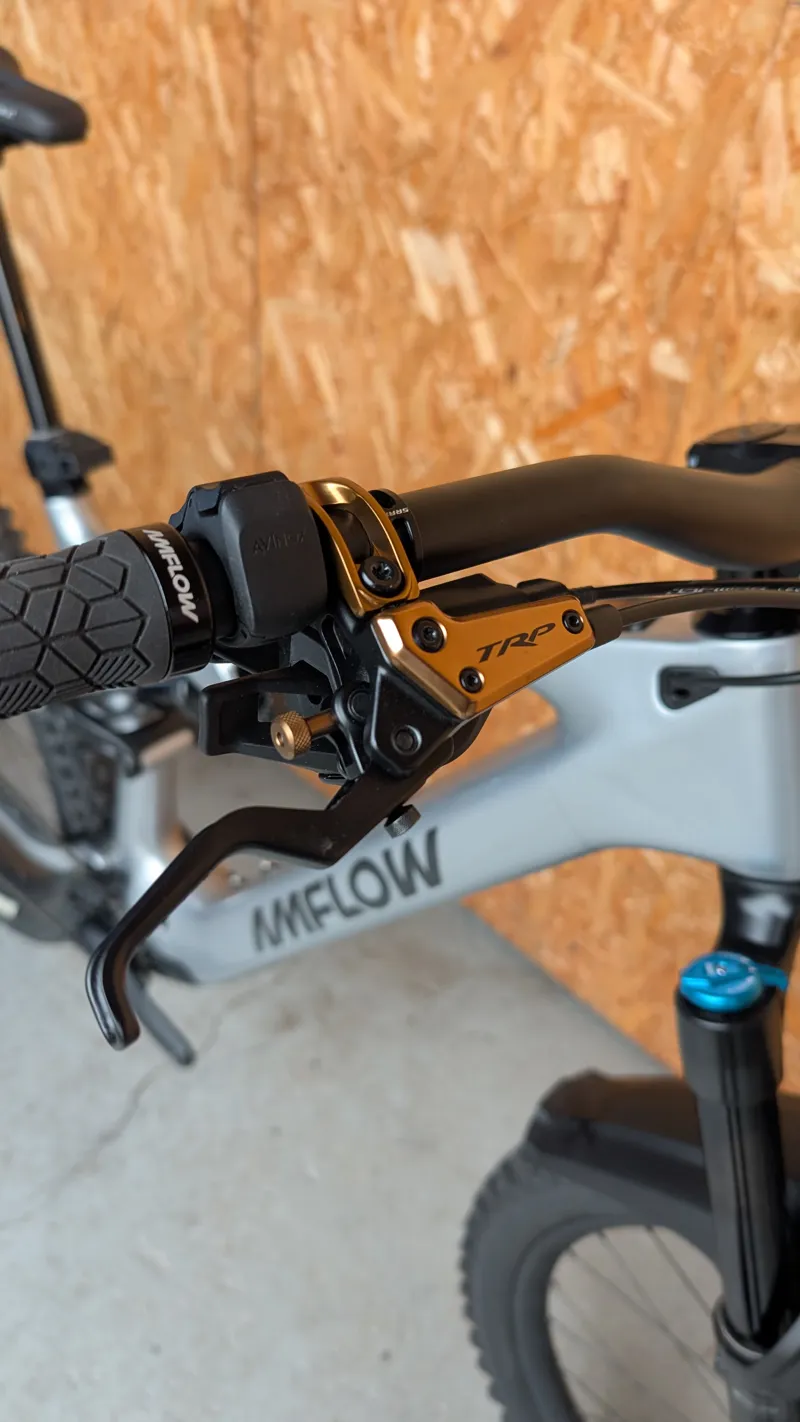

- Brakes - TRP EVO PRO in Gold, Galfer Shark Rotors and Pro Pads

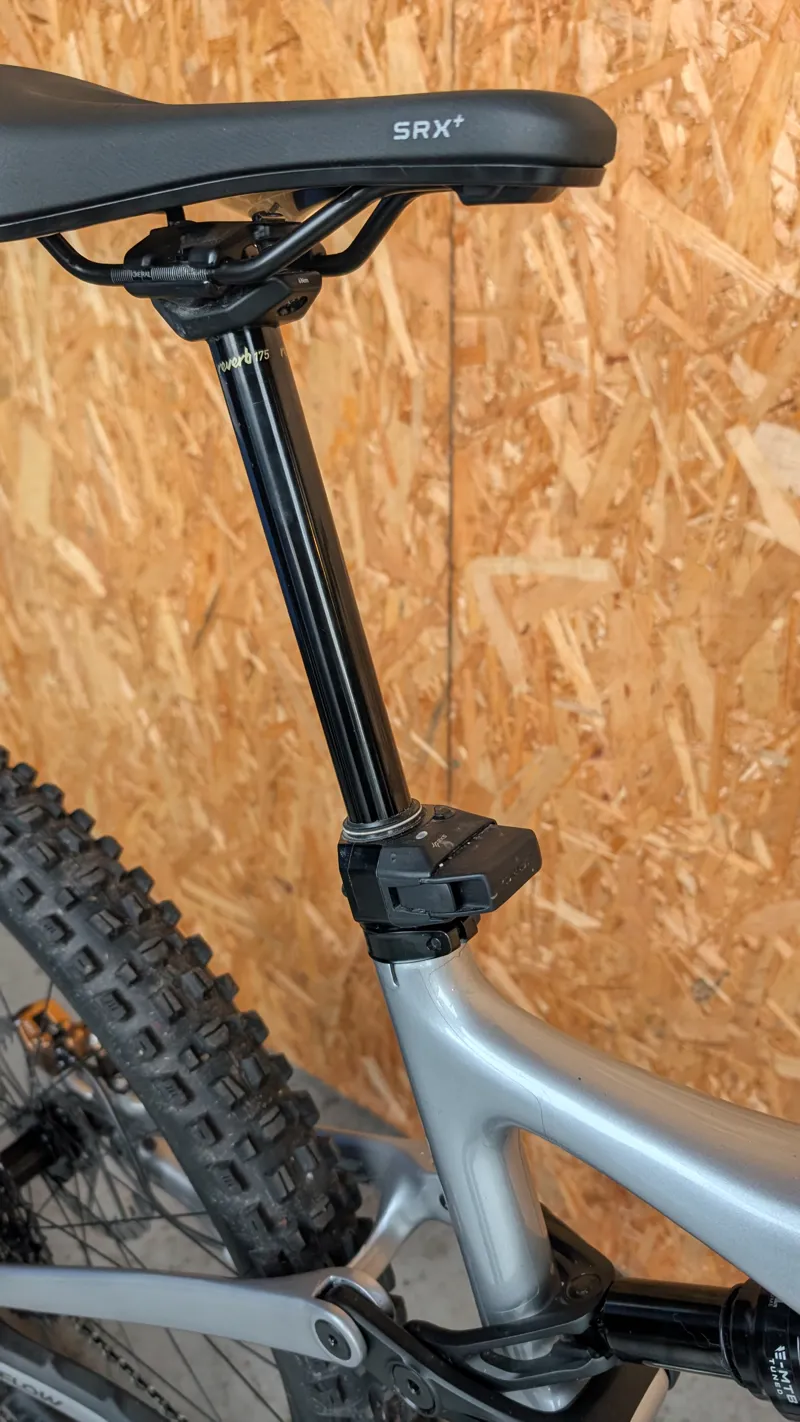

- Dropper post - Reverb AXS 175mm
- Tyres - Assegai Rear, Michelin Wild Enduro Front [Can be changed upon request]
Low Mileage - Large - 374 Miles, 602KM
Set up Tubeless with Reserve Filmore Valves
Comes with Full Warranty
Chargers, Shock pump, etc Included

*Pedals Included*
Technical Information

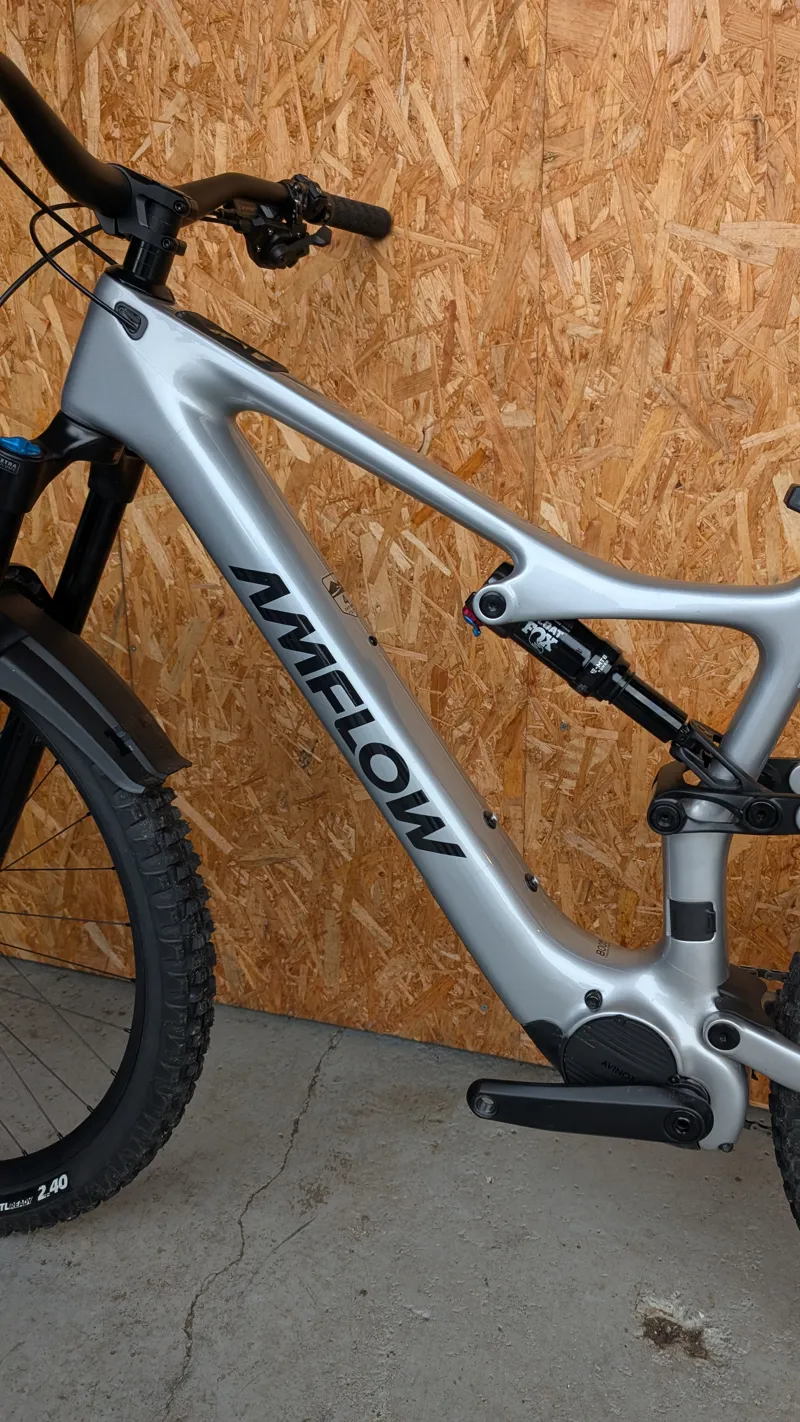

Frame

Amflow PL Carbon Frame

Satin Silver

150mm rear travel

Compatible with 27.5"and 29"rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

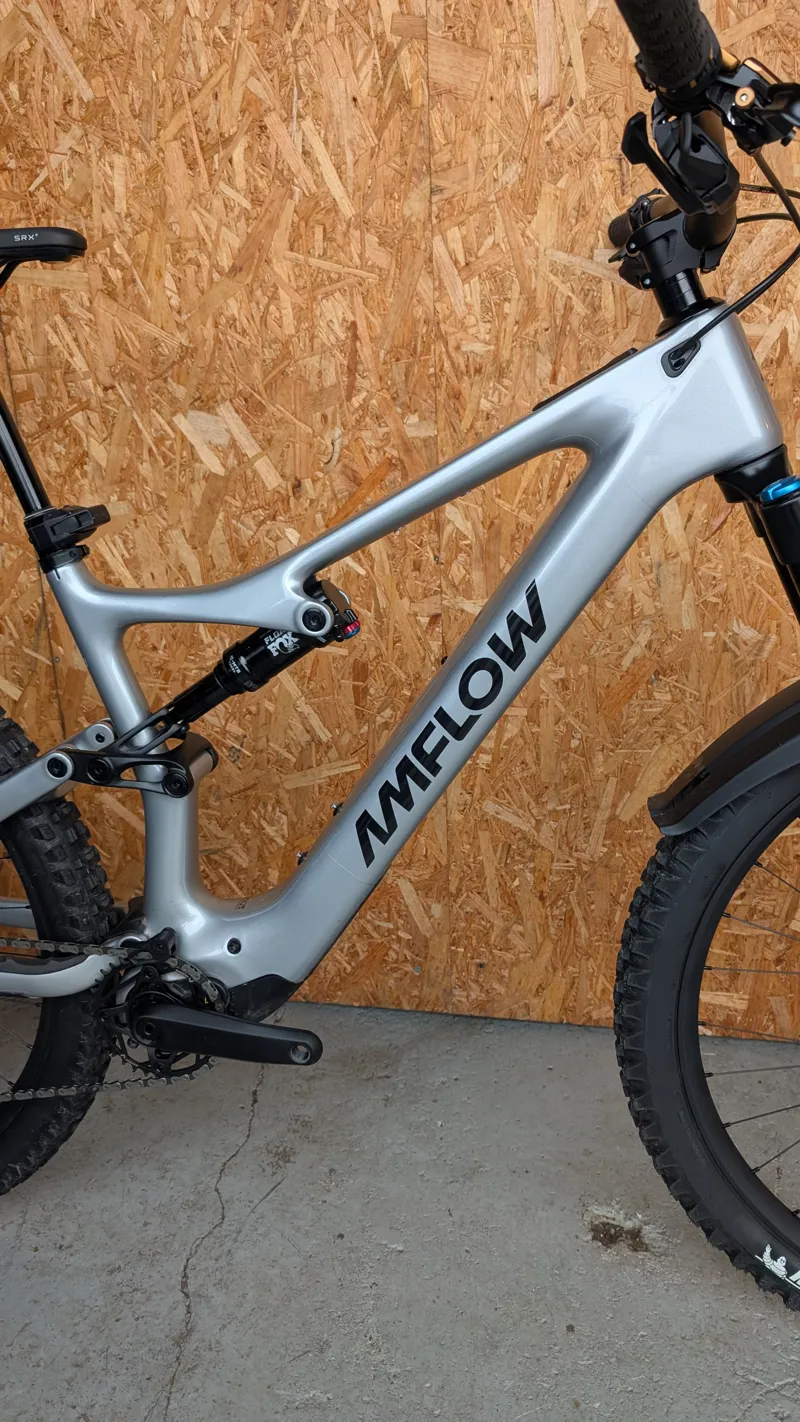

Rear shock

FOX Float Performance

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

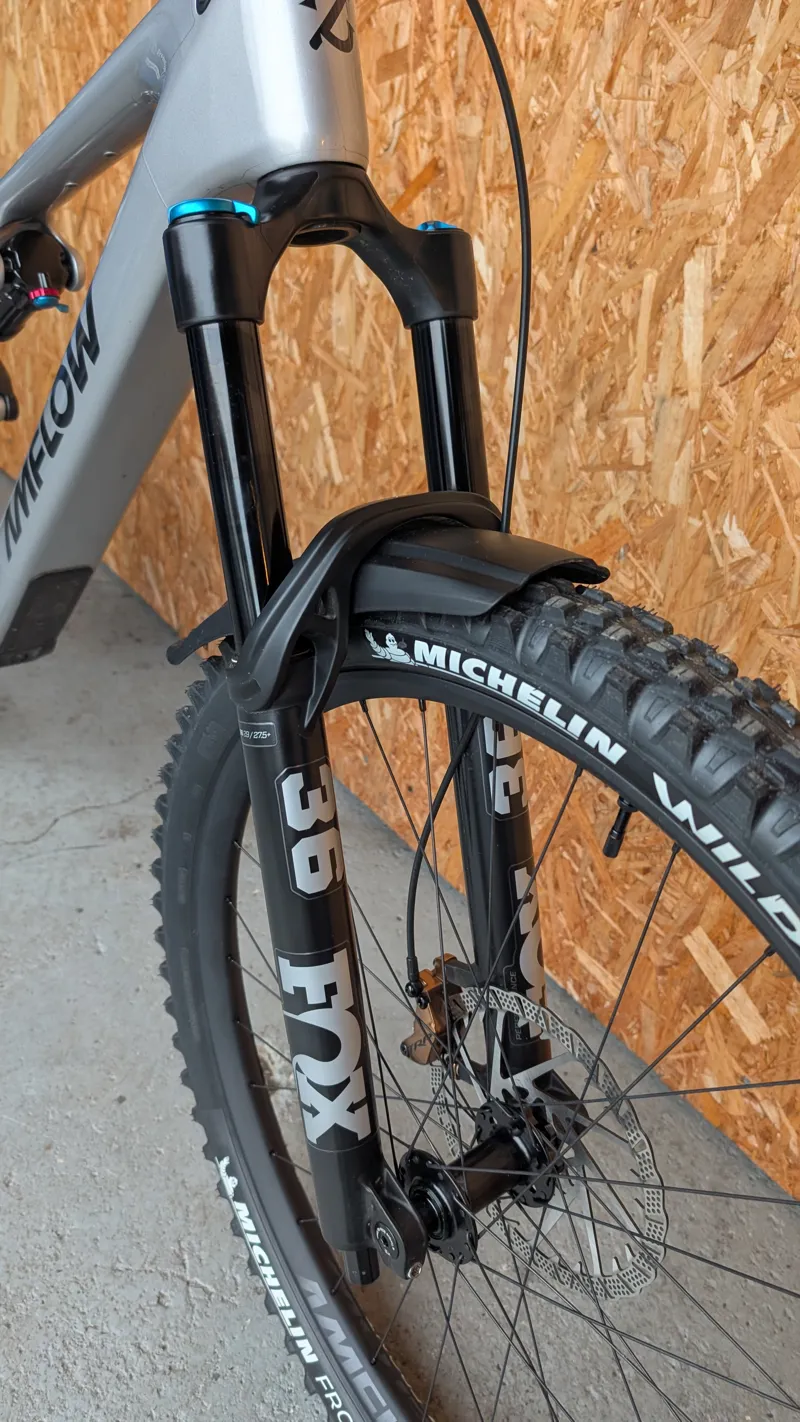

Fork

FOX 36 Performance

160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

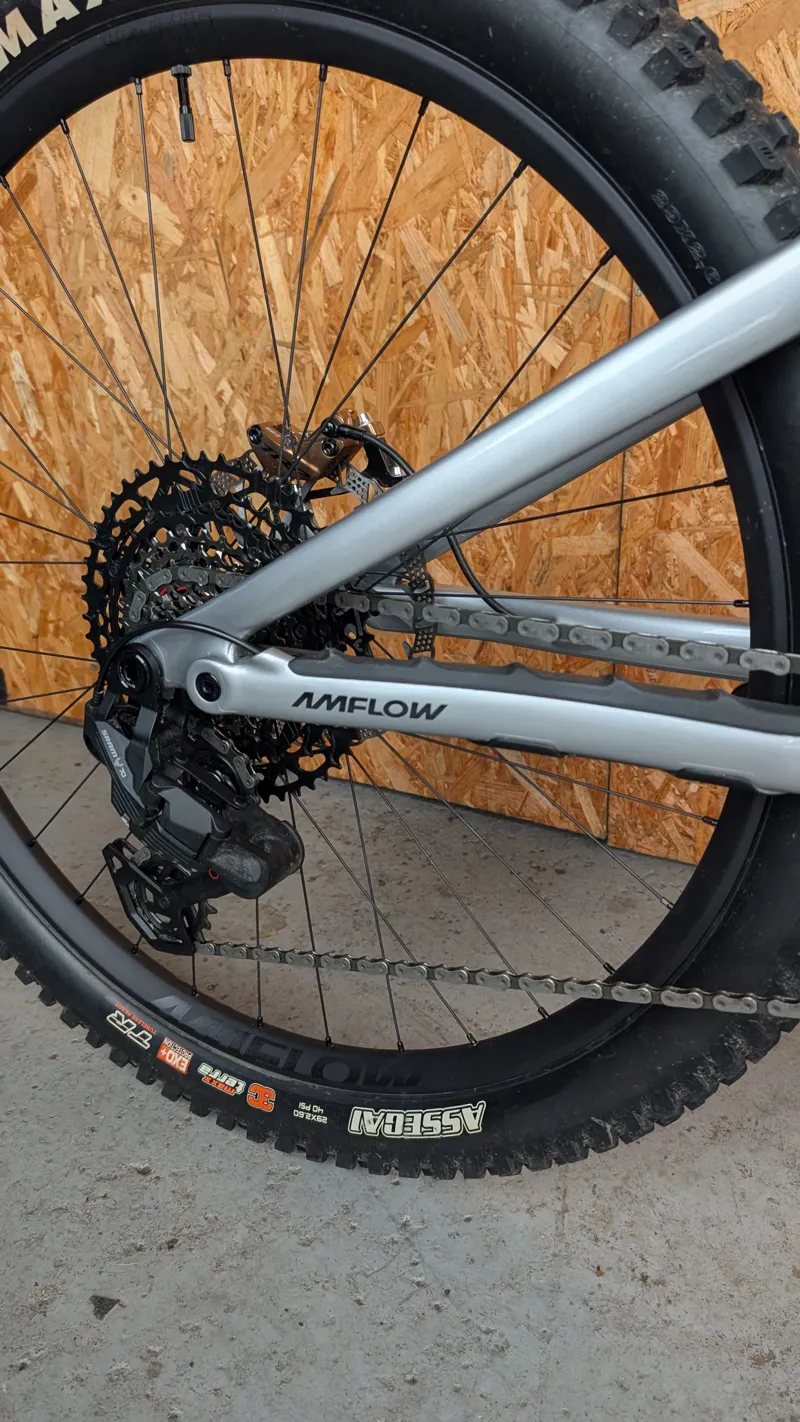

Rear Derailleur: SRAM GX Eagle 12-speed

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM GX Eagle Trigger Shifter|Single Click

Cassette: SRAM PG-1230, 11-50T

Chain: SRAM NX Eagle

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

Amflow HMA-30

Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Spokes: SAPIM E-Light J-bend

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5"WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Alloy Handlebar

35mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm

Saddle

Selle Royal SRX Plus

Seatpost

KS Rage-i

M: 150mm

L: 170mm

XL/XXL: 190mm

Accessories

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Front and Rear Lights

Sizing Information
MLXLXXL
AReach452mm475mm500mm525mm
BStack Height618mm628mm641mm655mm
CStandover Height780mm785mm790mm795mm
DFront Center782mm810mm844mm873mm
EFork Length570mm570mm570mm570mm
FWheelbase1227mm1255mm1289mm1318mm
GChainstay Length445mm445mm445mm445mm
HBottom Bracket Drop29mm29mm29mm29mm
IBottom Bracket Height345.5mm345.5mm345.5mm345.5mm
JEffective Top Tube Length595mm620mm648mm676mm
KHead Tube Angle64.5°64.5°64.5°64.5°
LHead Tube Length105mm115mm130mm145mm
MActual Seat Tube Angle70°70°70°70°
NEffective Seat Tube Angle77°77°77°77°
OSeat Tube Height430mm450mm470mm500mm
